Project Overview

I served as a software co-lead on UBC AeroDesign, where we built a 3.5 lb autonomous fixed-wing aircraft for the 2025 SAE AeroDesign competition. Our team of 8 developers worked to deliver a flight software stack on STM32 hardware, from low-level sensor interfaces up to autonomous mission logic and ground station tooling.

System Architecture

The system is split across onboard firmware and a desktop ground station. On the aircraft side, the architecture emphasizes deterministic timing, reliable telemetry, and clean interfaces between sensing, controls, and communications.

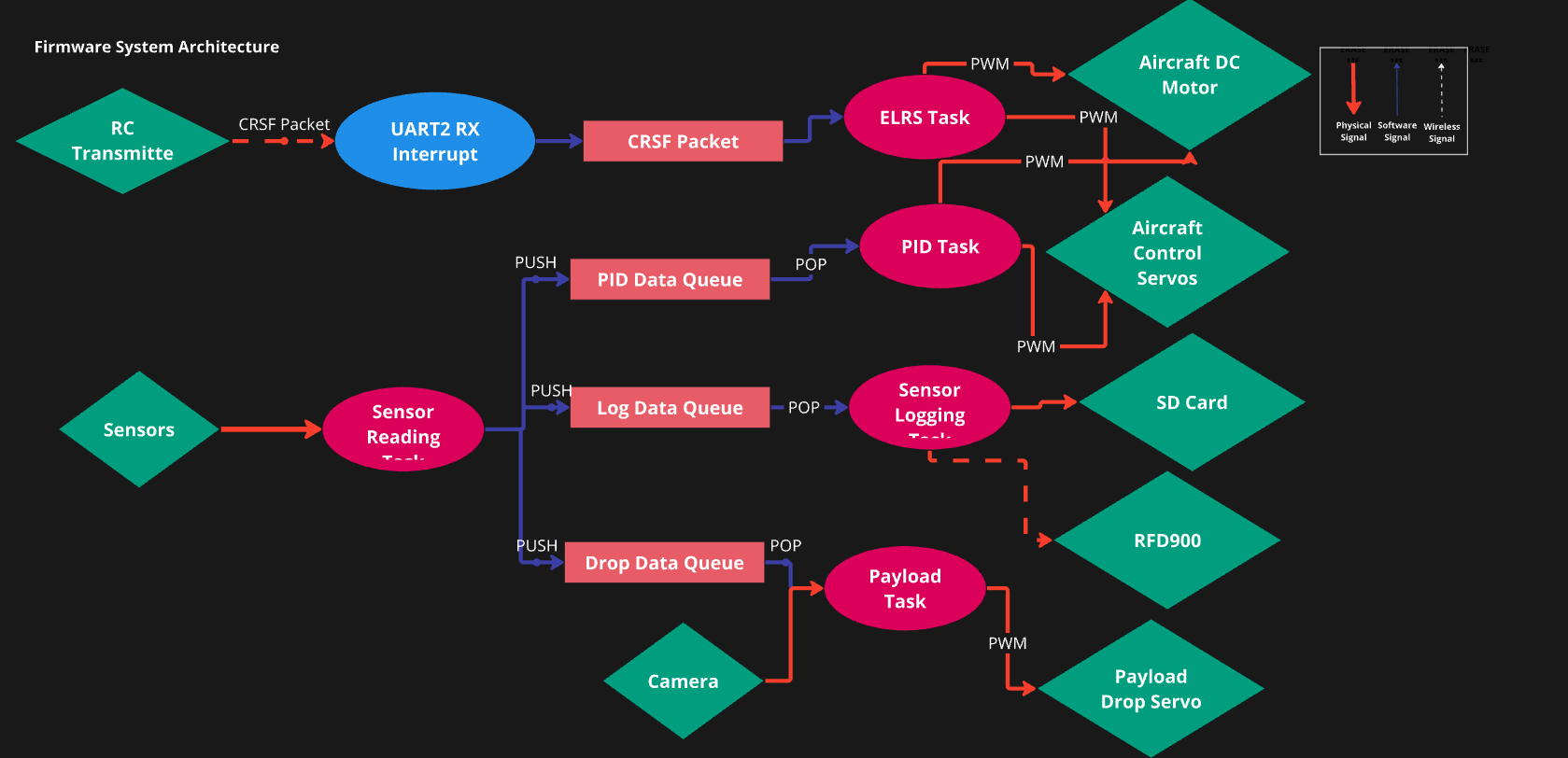

We designed our firmware architecture to use DMA-driven sensor acquisition while FreeRTOS tasks run flight controls, waypoint planning, and ground station communications in parallel. This lets us maintain high-rate measurements without blocking critical control loops.

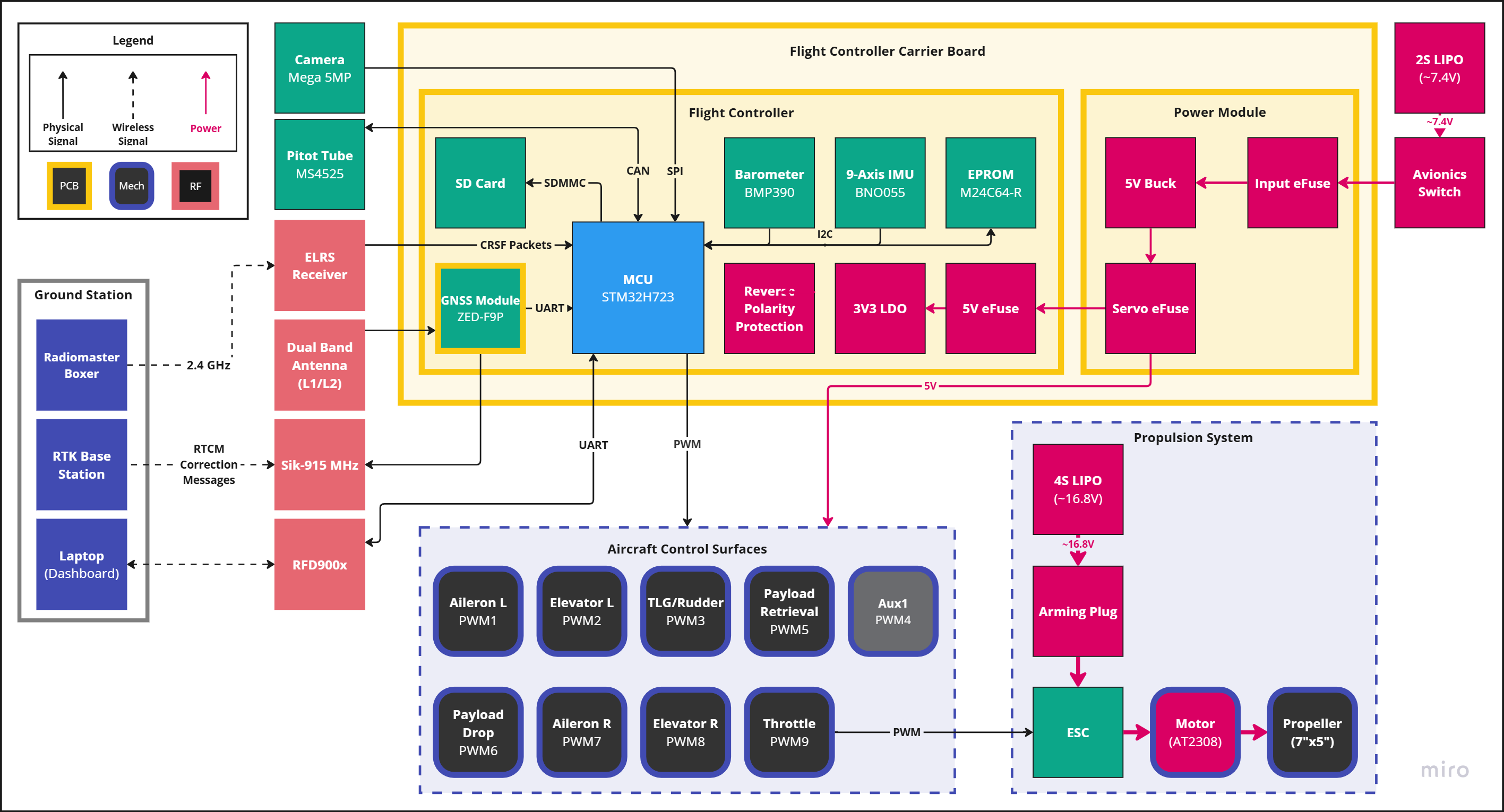

At a high level, the flight stack is organized in four layers: hardware abstraction (UART, I2C, SPI, SD), sensor and estimation, flight-state and control logic, and telemetry/command interfaces to the ground station. This separation made it easier for multiple developers to iterate in parallel without breaking flight-critical pathways.

Firmware Architecture Deep Dive

The STM32H723 flight controller firmware runs on FreeRTOS (CMSIS-RTOS v2) with dedicated tasks for flight control, sensor fusion, and telemetry/logging. We intentionally split responsibilities so each loop has a clear deadline and ownership.

• flight_task_t (20 ms loop): runs the flight state machine, command execution, and actuator output updates.
• sensor_task (10 ms loop): reads and filters IMU, barometer, GNSS, and related sensor streams.
• sensor_log_task (100 ms loop): handles SD logging and telemetry transmission over the RFD900 link.
• Mutex-protected shared data: synchronized access to raw/filtered sensor buffers, debug UART, and SD card writes.

DMA and Communications Pipeline

To reduce CPU overhead and improve responsiveness, the firmware uses UART DMA Receive-to-Idle on both pilot-control and GNSS links. Incoming packets are parsed in callback-driven flows, then handed to the control/state logic.

• ELRS control receiver: CRSF frames are decoded from DMA buffers, mapped to PWM commands, and used for arming/mode selection.
• ZED-F9P GNSS: UBX parsing runs on DMA-fed buffers; valid 3D-fix data gates the sensor task startup sequence.
• RFD900 telemetry + commands: packed telemetry streams to DACQSY while command packets tune gains, DLZ settings, and payload actions in flight.

Flight Modes, Control, and Safety

A dedicated flight state machine manages transitions between manual pass-through, auto-level/autopilot, and failsafe. If receiver packets time out, the system enters failsafe and drives throttle and control surfaces to safe outputs.

• Autopilot control stack: PID-based attitude and heading logic computes roll/pitch/yaw commands and maps them into servo PWM limits.
• Waypoint / DLZ logic: heading and distance-to-target calculations drive autonomous approach and payload release decisions.
• Manual override path: pilot commands can retake authority through mode switches for safer testing and recovery.

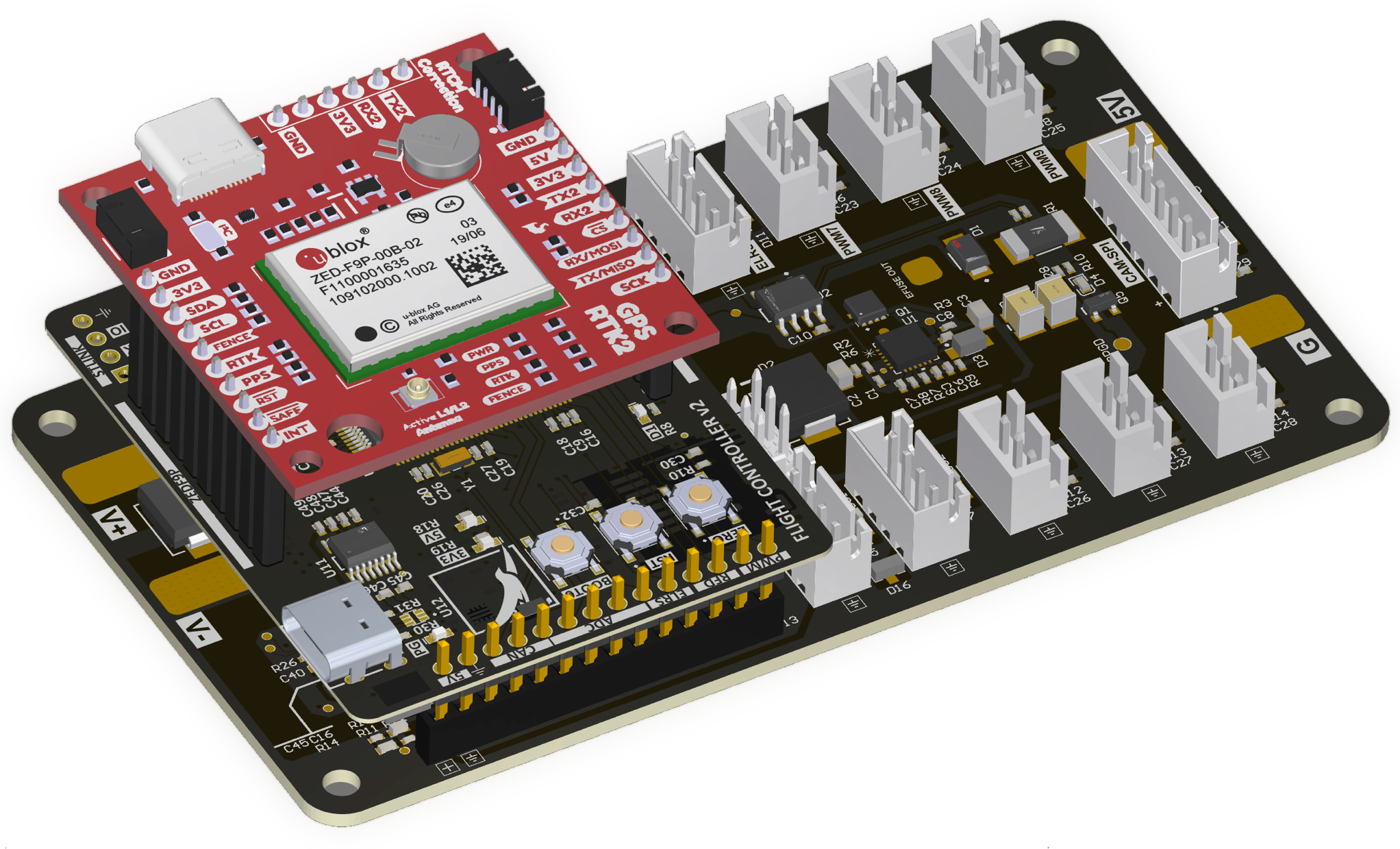

Flight Controller and Avionics Stack

Our onboard stack combines a custom flight controller and supporting avionics hardware to handle sensing, control, and payload interfaces. The goal was to create a robust platform we could iterate on quickly throughout testing.

Ground Station Software

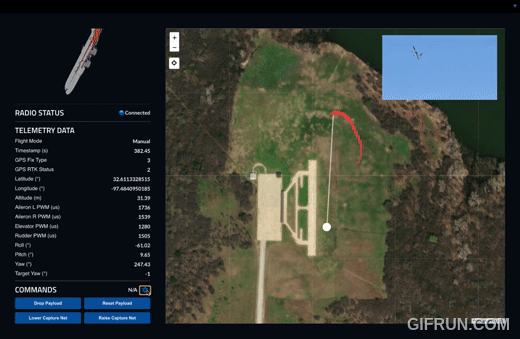

We built a custom ground station with live flight tracking, telemetry visualization, and remote payload actuation. The stack uses a Python and Redis backend with a React and Electron desktop frontend so our operators can monitor and command the aircraft in real time.

On the backend, the radio process unpacks incoming telemetry and publishes it to Redis streams. On the desktop side, an Electron process bridges Redis updates into the React UI for live flight-state awareness, telemetry visualization, and command dispatch back to the aircraft.

Key Contributions

• Led an 8-person software team to deliver an STM32 autopilot firmware stack for a fixed-wing aircraft in SAE AeroDesign.
• Designed a DMA + FreeRTOS architecture for high-rate sensor ingestion, real-time flight control, waypoint planning, and telemetry handling.
• Built the ground station software for live tracking, telemetry plots, and remote payload actuation using Python, Redis, React, and Electron.
